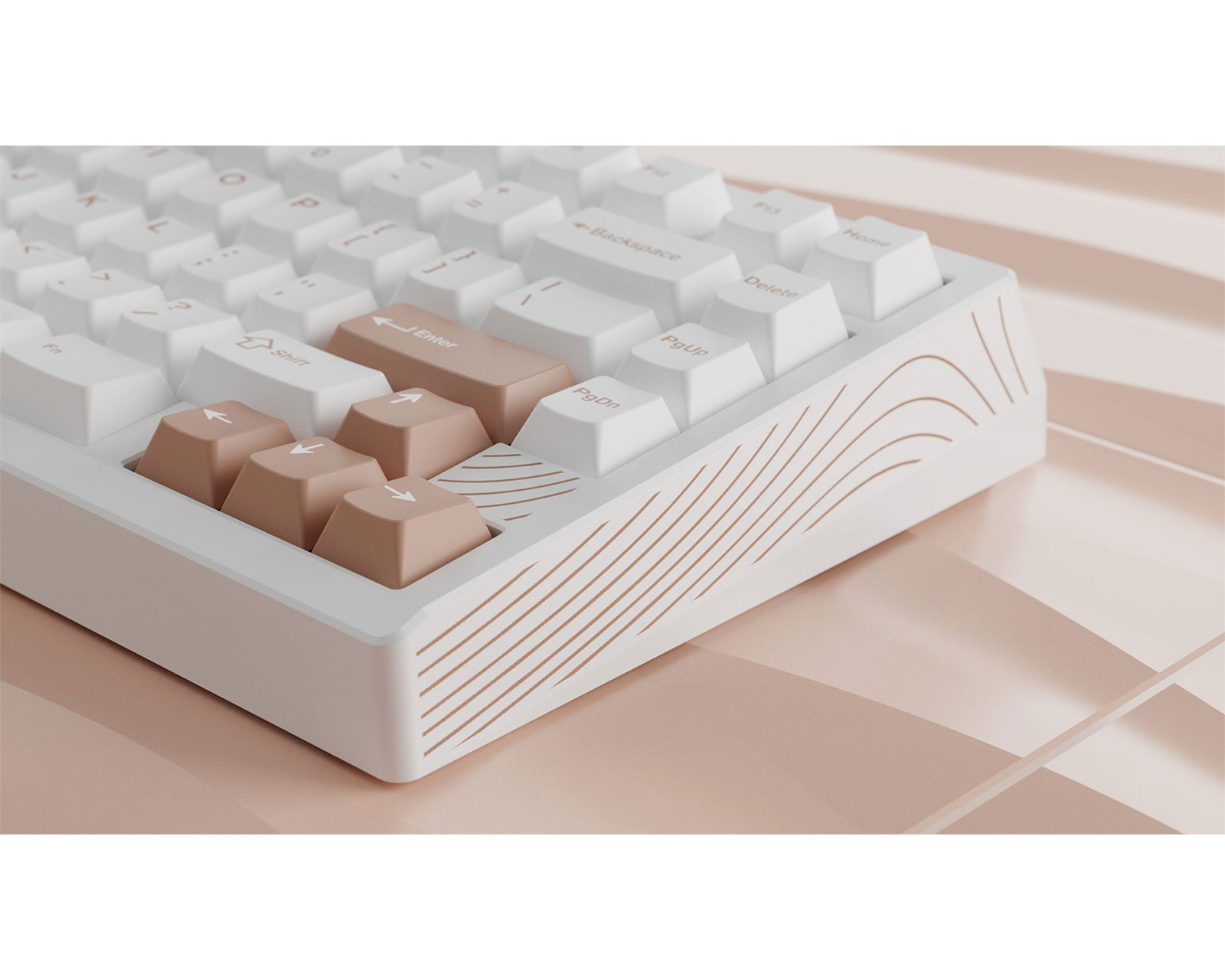

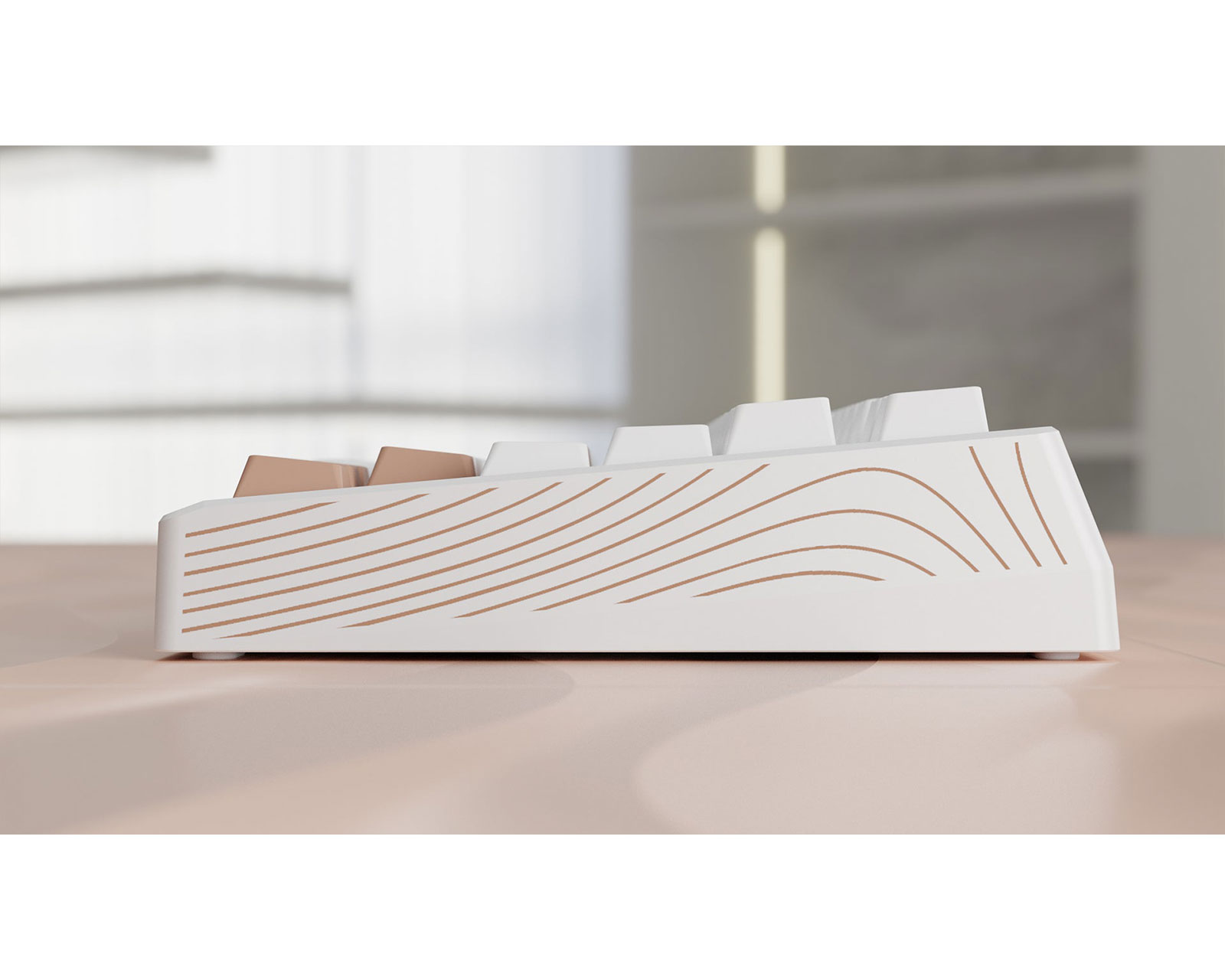

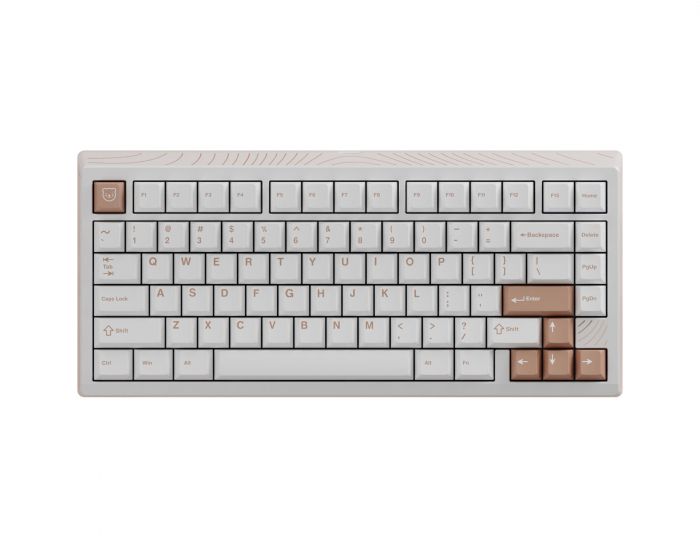

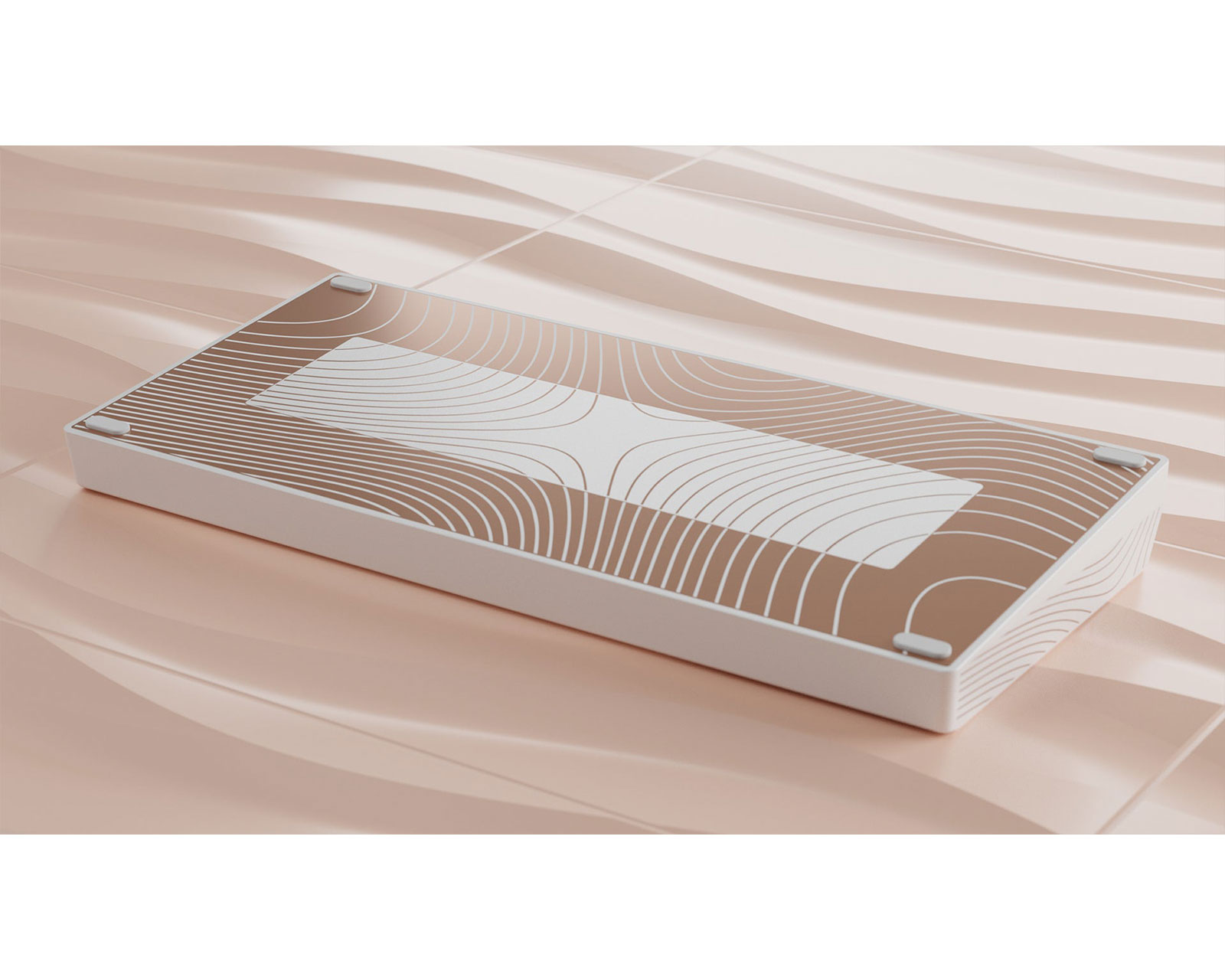

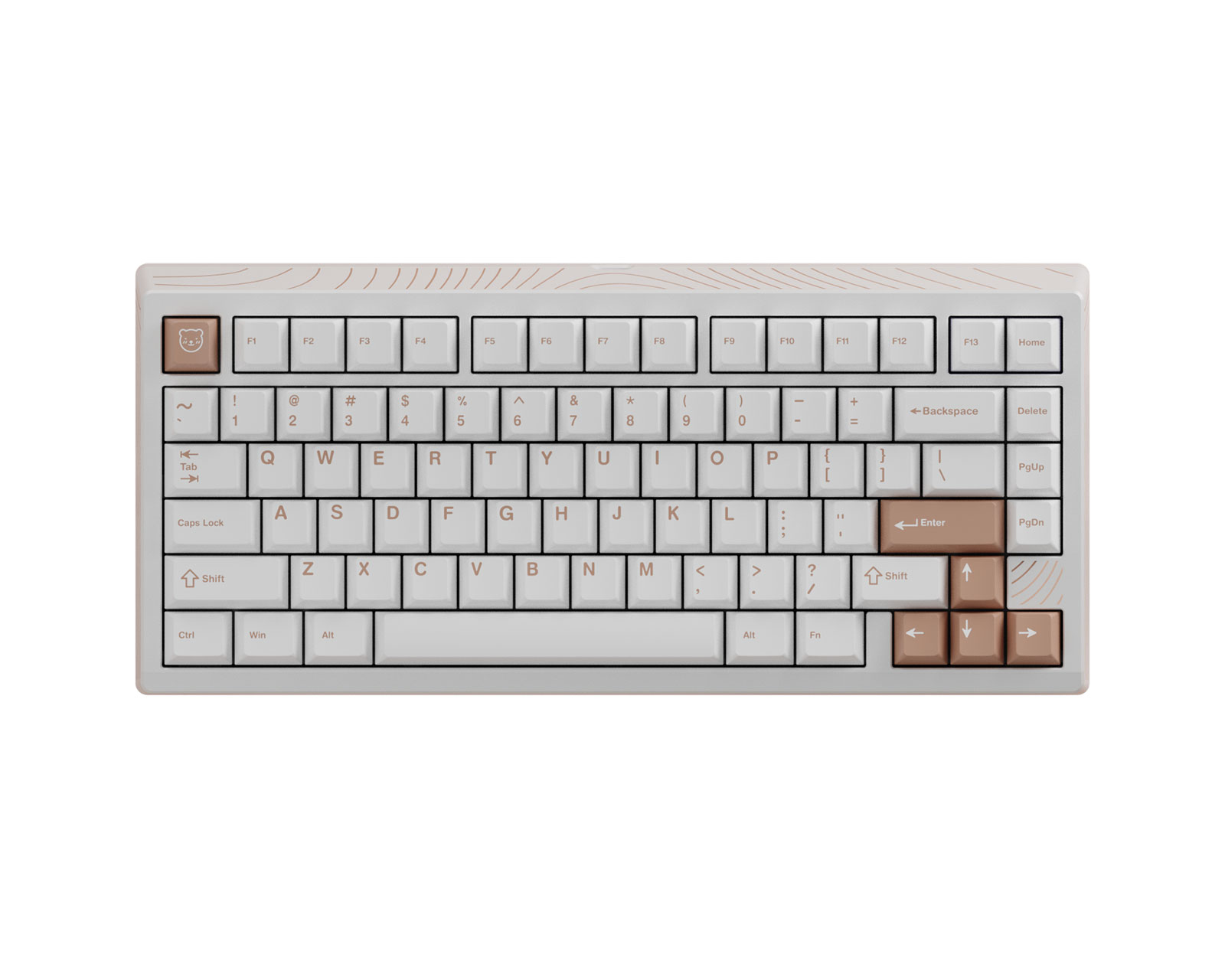

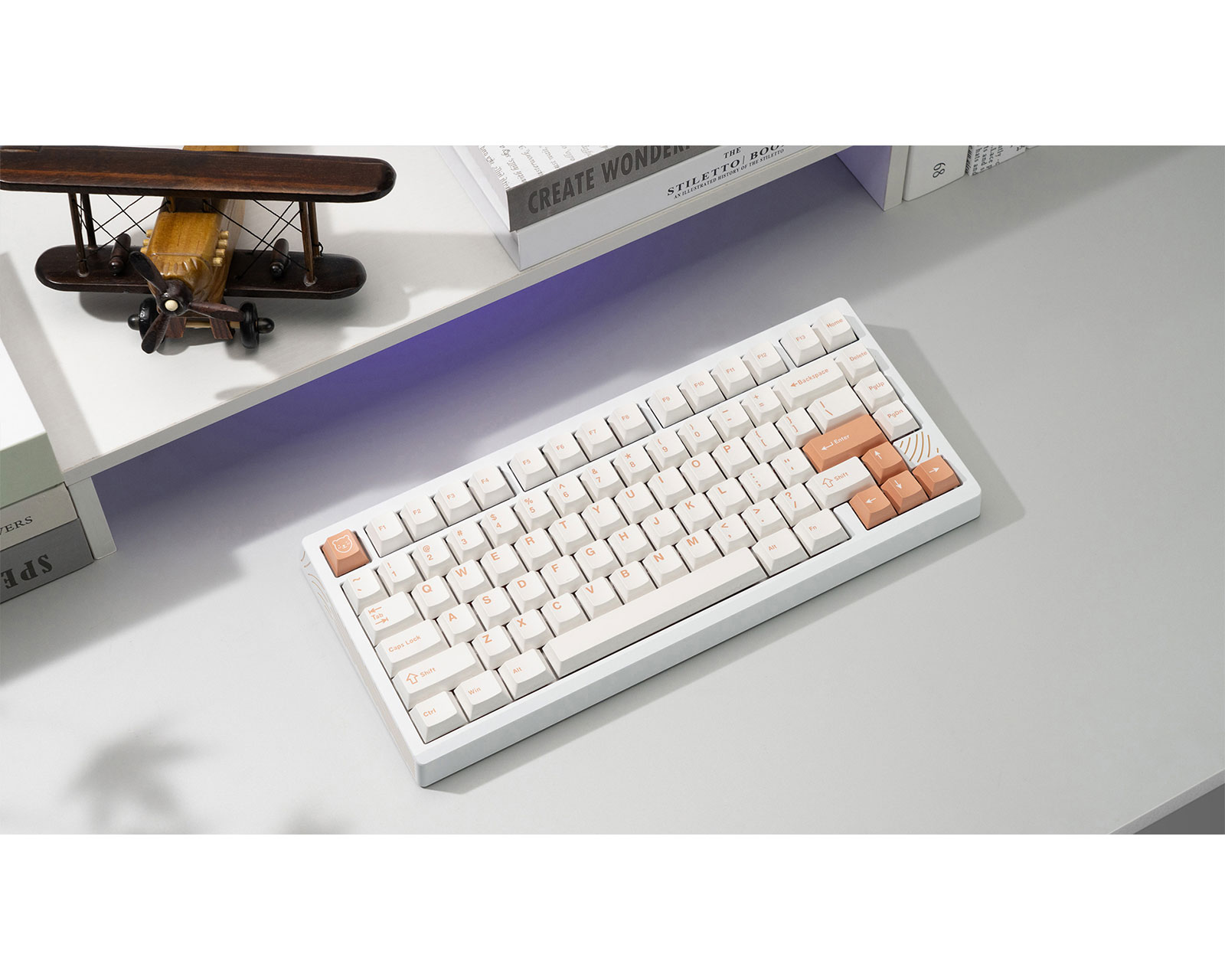

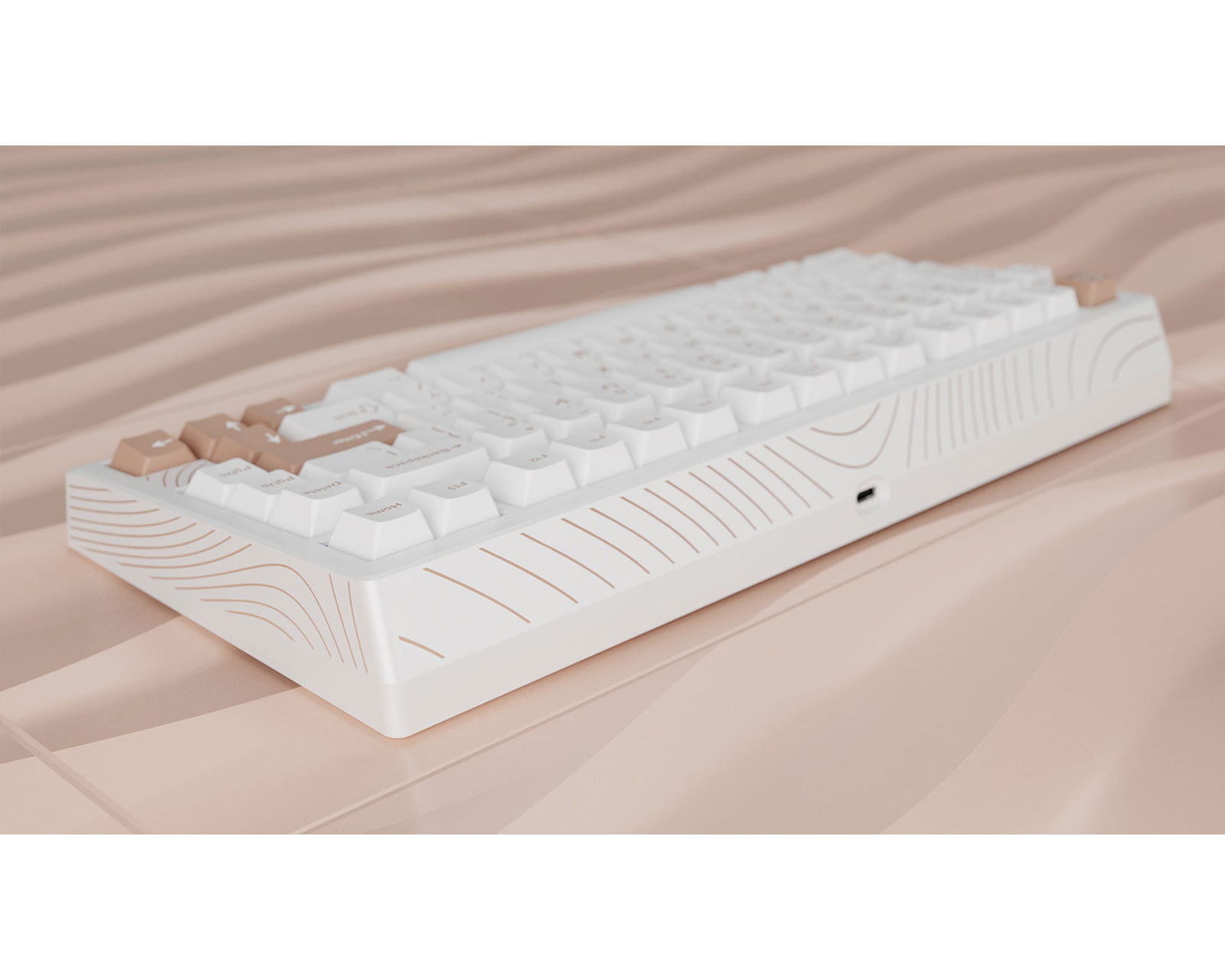

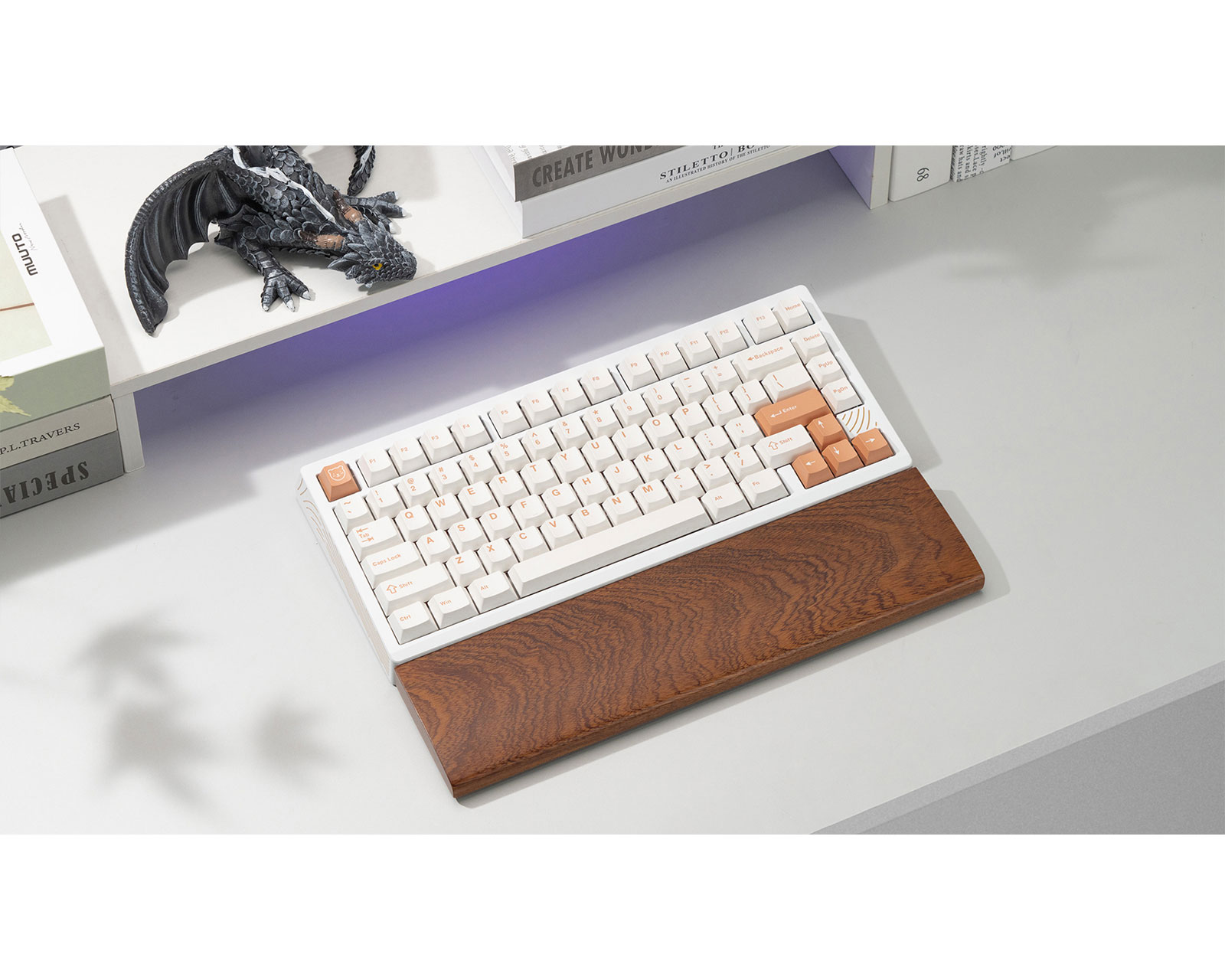

Wuque Studio BOOG75 Assembled Edition - Induction Coil

Produktbeskrivelse

ComputertilbehørTastatur og tilbehørGaming tastatur fra Wuque Studio

Vi introducerer BOOG75, en magnetisk switch-variant af populære ZOOM75, designet til præcis spilkontrol.

Oplev forskellen med magnetkontakter, der bruger en nedre Hall-sensor og en øvre magnet. Aktiveringspunktet bestemmes ved at evaluere styrken af den inducerede strøm, hvilket giver unik og præcis kontrol i enhver spilsituation.

Med automatisk kalibrering via Baseline Calibration-algoritmen sikrer BOOG75 ensartet ydeevne på trods af temperatur, fugtighed eller magnetiske forskelle.

Få overtaget med justerbare aktiveringspunkter fra 0,1 mm til 4,0 mm. Juster aktiveringsafstanden for hver tast for at finde din ideelle nøglerejseafstand og højne din spiloplevelse med BOOG75.

Keyboard Specifications:

• Gasket Mount Design
• ANSI Layout
• 75% Layout
• PCB: 1.6mm, with Ai03 DB
• 5° Typing angle
• 22.14 mm front height
• Dimension: 323.6 x 145.78 x 34.73 (mm)
• Default plate: Alu
• Case Material: 6063 Aluminum
• Case Finish: Anodized+Infill (No Sparkles, No Chamfer)
• Backplate and External Weight: Anodized+Infill
• Switches Type: Gateron KS37B
• The Orientation of the Switches: North Facing
• No SS Internal Weight
• Boog75 Wired Polling Rate: 1000hz
• QMK or VIA Support: No, customization requires to use of our independent driver.
• Total weight: About 3kg

Keycap Specifications:

• Manufacturer: WS PBT
• Keycap Material: Doubleshot PBT
• Keycap Thickness: 1.6mm
• Keycap Profile: Cherry
• Keys QTY: 81 keys

Switch Specifications:

• Product Name: GATERON KS-37B Magnetic Hall Sensor Keyboard Switch
• Initial Force:30±10gf.
• Total travel:4.0±0.2mm.
• Operation Lifetime:150,000,000 Cycles.
• Bottom Force: 50±10gf.
• Top Housing Material: Thermoplastic, Transparent
• Bottom Housing Material: Thermoplastic, Red
• Stem Material: Thermoplastic, Red
• Spring Material: Stainless steel

Highlights:

• Dual-rail structure for stability.
• Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
• Extended the stem for better switch stability.
• Integrated spotlight lens design, enhancing light guidance.
• Every switch features a very tight housing and a perfect coat of factory lube. No need to spend hours and hours lubing switches, they are good to go off the pack!

Kit Contents:

Fully Assembled Keyboard, including:

1. Top and bottom cases
2. HE Module(Magnetic Switch, Plate, Gasket, Sound absorbing foam, and PCB)
3. Case foam
4. The themed keycaps
5. Tool accessories

Varenummer

Vores varenummer: 29768
Producentens varenr: WS-BOOG75-IND-CL
